Winched Stage Lighting Bar Design and Installation

Stage Services Ltd supply and install winched internally wired stage lighting bars or IWBs. All bars are designed and manufactured to professional theatre standards and are available as single lighting bars, ladder lighting bars, or full stage lighting grids.

All winched stage lighting bar systems are wired in 1.5mm 6491B low smoke and fume or 2.5mm Tri rated cable depending on connector type with extra 2.5mm tri rated earth bonds. DMX,NL4 & RJ45 will be wired with industry standard cables.
Each length of tube is bonded back to the Earth pin inside the termination box.
Unless otherwise stated sockets will be evenly spaced along the length, wiring is to din mounted terminals with a common earth and each circuit identified with cable clip on numbers.

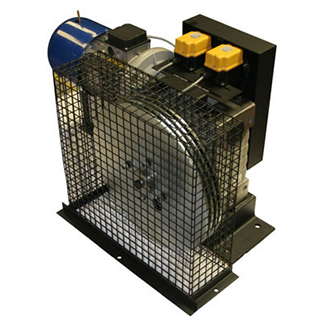

Winches can be manual operation or electric and are available in a variety of different loading capacities 250Kg, 500kg etc. Loading capacities must be determined by the builds structural engineers.

Winches and IWB Stage lighting bars are custom manufactured to order, and no standard lighting bars are held in stock.

We offer a complete design, delivery and installation service. We also offer fully designed and installed sound, stage lighting, and audiovisual systems.

Please contact our sales office for further details on 01903 716333 or use our contact us via the web site.
