Specialist Theatrical Designers and Installers

Stage Services Ltd supply custom manufactured internally wired lighting bars or IWBs. All lighting bars are designed and manufactured to professional theatre standards and are available as single lighting bars, ladder lighting bars, or full stage lighting grids. Lighting bars can be fix in position, or a winch system. Please visit our winched stage lighting bar section for more details >>>.

All Internally wired lighting bars are pre wired in 1.5mm 6491B low smoke and fume or 2.5mm Tri rated cable depending on connector type with extra 2.5mm tri rated earth bonds. DMX, NL4 & RJ45 will be wired with industry standard cables.
Each length of tube is bonded back to the Earth pin inside the termination box.
Unless otherwise stated sockets will be evenly spaced along the length, wiring is to din mounted terminals with a common earth and each circuit identified with cable clip on numbers.

IWB Stage lighting bars are custom manufactured to order, and no standard lighting bars are held in stock.

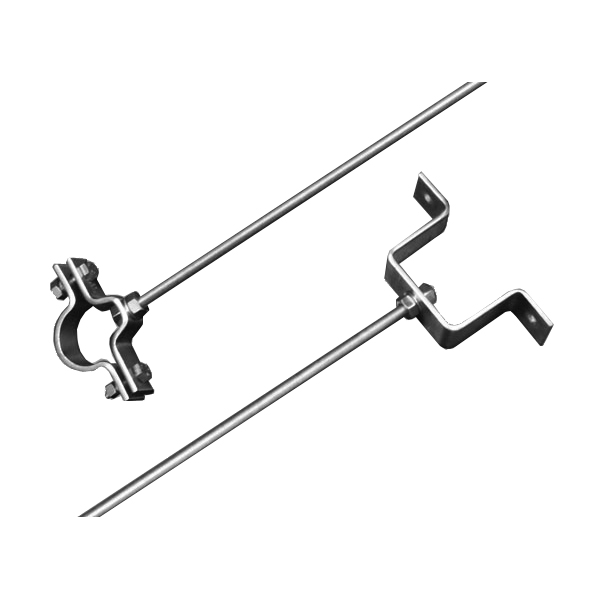

An example range of our IWB internally wired lighting bars and associated installation products can be seen on our sales shop pages. Click Here for installation products

We offer a complete design, delivery and installation service. We also offer fully designed and installed sound, stage lighting, and audiovisual systems.

Please contact our sales office for further details on 01903 716333 or use our contact us via the web site.



internally wired lighting bars iwb

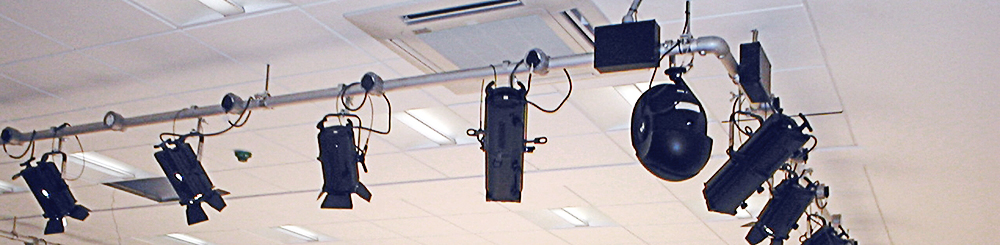

IWB Internally Wired Lighting Lighting Bars

  • Manufactured as standard from Anodised Silver, Anodised Black and Mill finish 48.3mm OD Aluminum tube.
  • Internally wired stage lighting bars can also be powder coated to RAL colours.
  • Bars can be made to any length, with custom socket center`s and wired in any fashion (e.g. Radial, Series, Ring, Cyclorama or individual circuits).

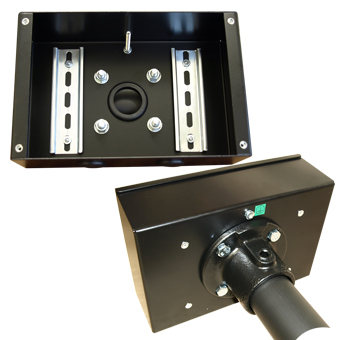

  • Side or end mounted termination box.
  • Internally wired lighting bars can be wired with any combination of inlets or outlets.
  • ABS housings are available in Grey, Black and White.
  • IWBs over 6mtr will be fully wired and will come with a 200mm steel joiner.
internally wired iwb curved lightign bars

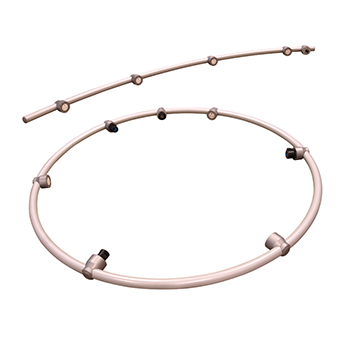

IWB Internally Wired Curved Stage Lighting Bars

  • Manufactured as standard from Anodised Silver, Anodised Black and Mill finish 48.3mm OD Aluminum tube.
  • Curved to specified radius on cnc tube rolling machines.
  • Internally wired curved stage lighting bars can also be powder coated to RAL colours.
  • Side or end mounted termination box.
  • Internally wired lighting bars can be wired with any combination of inlets or outlets.
  • Bars can be made any length, with custom socket centre`s and wired in any fashion (e.g. Radial, Series, Ring, Cyclorama or individual circuits).
  • ABS housings are available in Grey, Black and White.
  • Bars over 6mtr will be fully wired and will come with a 200mm steel joiner.
internally wired ladder lighting bars iwbs

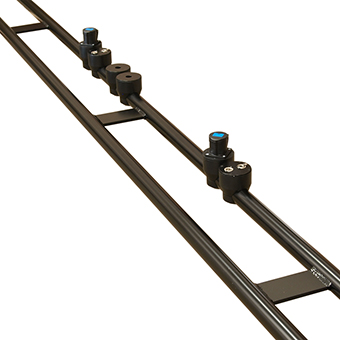

IWB Internally Wired Lighting Ladder Bars

  • Manufactured as standard from Anodised Silver, Anodised Black and Mill finish 48.3mm OD Aluminum tube.
  • Welded in parallel to a second aluminum tube to increase rigidity over large mounting point spans.
  • Internally wired stage lighting ladder bars can also be powder coated to RAL colours.
  • Side or end mounted termination box.
  • Bars can be made any length, with custom socket center`s and wired in any fashion (e.g. Radial, Series, Ring, Cyclorama or individual circuits).
  • Bars can be wired with any combination of inlets or outlets.
  • Bars over 6mtr will be fully wired and will come with a 200mm steel joiner.
  • ABS housings are available in Grey, Black and White.
internally wired stage lighting grid iwbs

Internally Wired Stage Lighting Grids

  • Manufactured as standard from Anodised Silver, Anodised Black and Mill finish 48.3mm OD Aluminum tube.
  • Internally wired stage lighting grids can also be powder coated to RAL colours.
  • Grids can be made any size and configuration, with custom socket centre`s and wired in any fashion (e.g. Radial, Series, Ring, Cyclorama or individual circuits).
  • Grids can be wired with any combination of inlets or outlets.
  • ABS housings are available in Grey, Black and White.
  • Side mounted termination box.
  • Bars over 6mtr will be fully wired and will come with a 200mm steel joiner.



All Internally wired lighting bars are tested to IEC 60439-1 , continuity and polarity tested, we can also offer insulation resistance testing if required. Socket housing identification labels can also be supplied.
